Product Overview

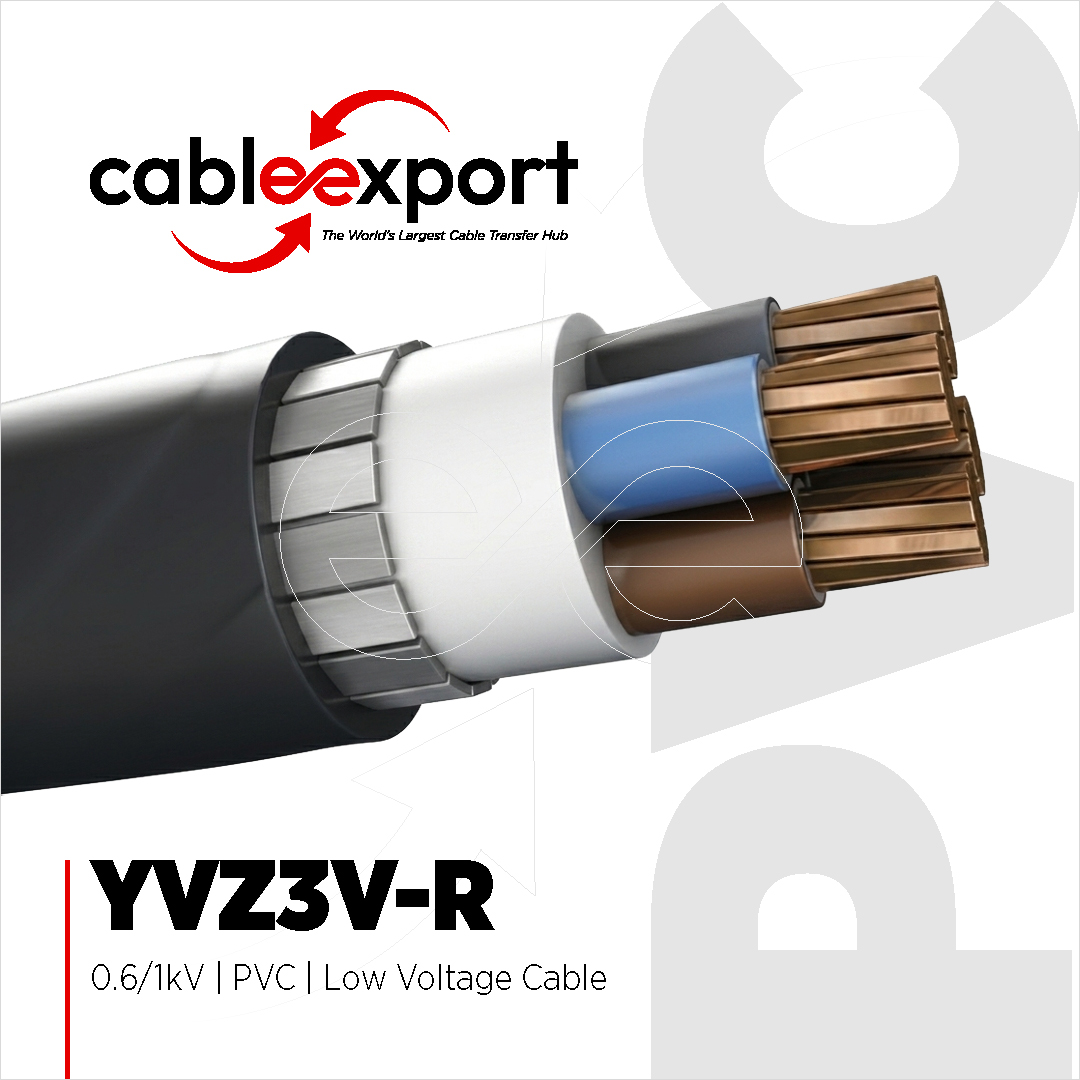

The YVZ3V-R 4×300 mm² 0.6/1kV power cable is a heavy-duty, multi-core cable engineered for reliable power transmission in industrial and underground infrastructure. Featuring stranded copper conductors and specialized flat galvanized steel wire armoring, this cable provides exceptional protection against high mechanical loads, tensile stress, and external impacts during installation and operational lifecycles.
Key Technical Specifications
| Cable Type | YVZ3V-R |
| Cross-Section | 4×300 mm² |
| Rated Voltage (Uo/U) | 0.6/1 kV |
| Conductor Material | Stranded Copper (Class 2) |
| Insulation Material | PVC |
| Armor Type | Flat Galvanized Steel Wire Armor (SWA) |
| CPR Classification | Eca |
| Design Standard | TS IEC 60502-1 |
Applications & Installation
YVZ3V-R low-voltage armored cables are primarily specified for fixed installations in power networks, underground ducts, industrial plants, and switchgear stations. The flat galvanized steel wire armor allows the cable to withstand severe mechanical forces, making it ideal for installations subjected to high tensile strain, vertical runs, or areas exposed to potential mechanical damage. It is suitable for both indoor and outdoor routing.
Standards & Compliance
Manufactured in strict adherence to international electrical specifications, the YVZ3V-R cable complies with TS IEC 60502-1 standards. It holds a Construction Products Regulation (CPR) classification of Eca, ensuring verified fire performance and safety compliance across global infrastructure and commercial engineering projects.
