Product Overview

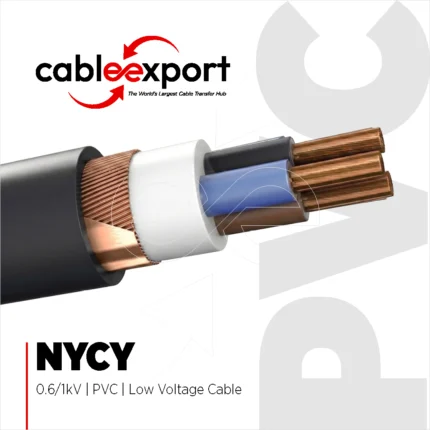

The NYCY 40×1.5/9 mm² 0.6/1kV cable is a heavy-duty, multi-core power cable engineered for industrial applications, power distribution networks, and underground installations. Designed with solid or stranded copper conductors, PVC insulation, and an outer concentric copper conductor screen, this cable provides robust mechanical protection and effective electromagnetic shielding against external interference. It is an optimal choice for municipal grids, transformer stations, and industrial facilities requiring secure and stable power delivery.
Key Technical Specifications
- Product Category: Low Voltage Power Cable
- Cable Type: NYCY
- Cross-Section: 40×1.5/9 mm²
- Rated Voltage: 0.6/1 kV
- Insulation Material: PVC
- Conductor Material: Copper
- Conductor Configuration: One or multi-wire copper conductor with concentric conductor
- CPR Class: Eca
- Design Standard: TS IEC 60502-1
| Parameter | Specification |
| Cable Designation | NYCY |
| Cross-Sectional Area | 40×1.5/9 mm² |
| Rated Voltage | 0.6/1 kV |
| Insulation Type | PVC |
| Conductor Type | Copper (Multi-core, Concentric) |
| CPR Rating | Eca |
| Compliance Standard | TS IEC 60502-1 |
Applications & Installation
NYCY 40×1.5/9 mm² cables are primarily utilized in underground power networks, internal installations within power plants, switching stations, and industrial facilities. The concentric copper conductor functions as a neutral conductor and can also serve as a protective earth (PE) screen, making it suitable for environments where electrical interference must be minimized. The durable PVC outer sheath allows for direct burial and installation in cable trays, dry or damp indoor environments, and outdoor settings.
Standards & Compliance
Manufactured in strict accordance with TS IEC 60502-1 specifications, this power cable complies with international quality benchmarks. It features an Eca CPR (Construction Products Regulation) classification, ensuring defined reaction-to-fire performance for building and infrastructure installations across global markets.
