Product Overview

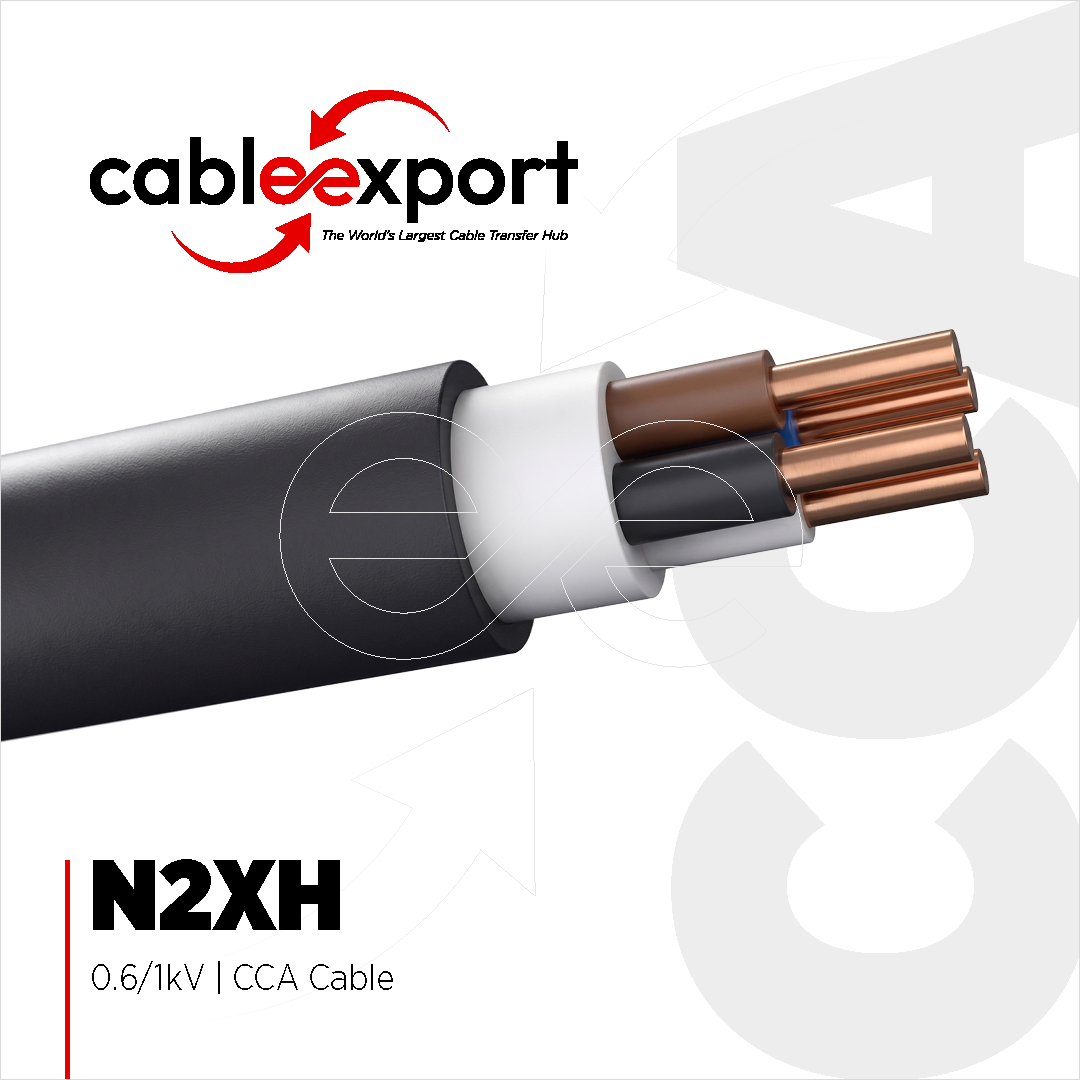

The N2XH 4×4 mm² 0.6/1kV is a premium low smoke zero halogen (LSZH) power cable designed for global infrastructure and industrial projects. Built with solid or stranded copper conductors and cross-linked polyethylene (XLPE) insulation, this cable delivers exceptional electrical and thermal performance. It is specifically engineered for installations where life safety, continuity of power, and protection against corrosive acid gases are critical engineering parameters.
Key Technical Specifications
| Cable Designation | N2XH |
| Conductor Cross-Section | 4×4 mm² |
| Rated Voltage (Uo/U) | 0.6/1 kV |
| Conductor Type | Single or Multi-Wire Copper Conductor |
| Insulation Material | XLPE (Cross-linked Polyethylene) |
| Outer Sheath Material | Halogen-Free, Flame-Retardant Compound (LSZH) |
| CPR Fire Classification | Cca-s1, d2, a1 |
Applications & Installation
This multi-core halogen-free cable is ideally suited for fixed installations in industrial plants, power stations, residential and commercial buildings, and areas with high concentration of people and valuable assets. It is recommended for environments where smoke emission and toxic gases could pose a threat to human life or electronic equipment in the event of a fire. Suitable for indoor installation in dry or damp environments, cable trays, and conduits. Direct burial in the ground is not recommended unless installed in protective piping.
Standards & Compliance
The N2XH 4×4 mm² power cable is manufactured in strict accordance with international quality and safety benchmarks, meeting the TS HD 604 S1 standard. Its superior fire behavior is certified under Construction Products Regulation (CPR) class Cca-s1, d2, a1, confirming low smoke density, minimal droplet formation, and absence of acidic gases during combustion.
