Product Overview

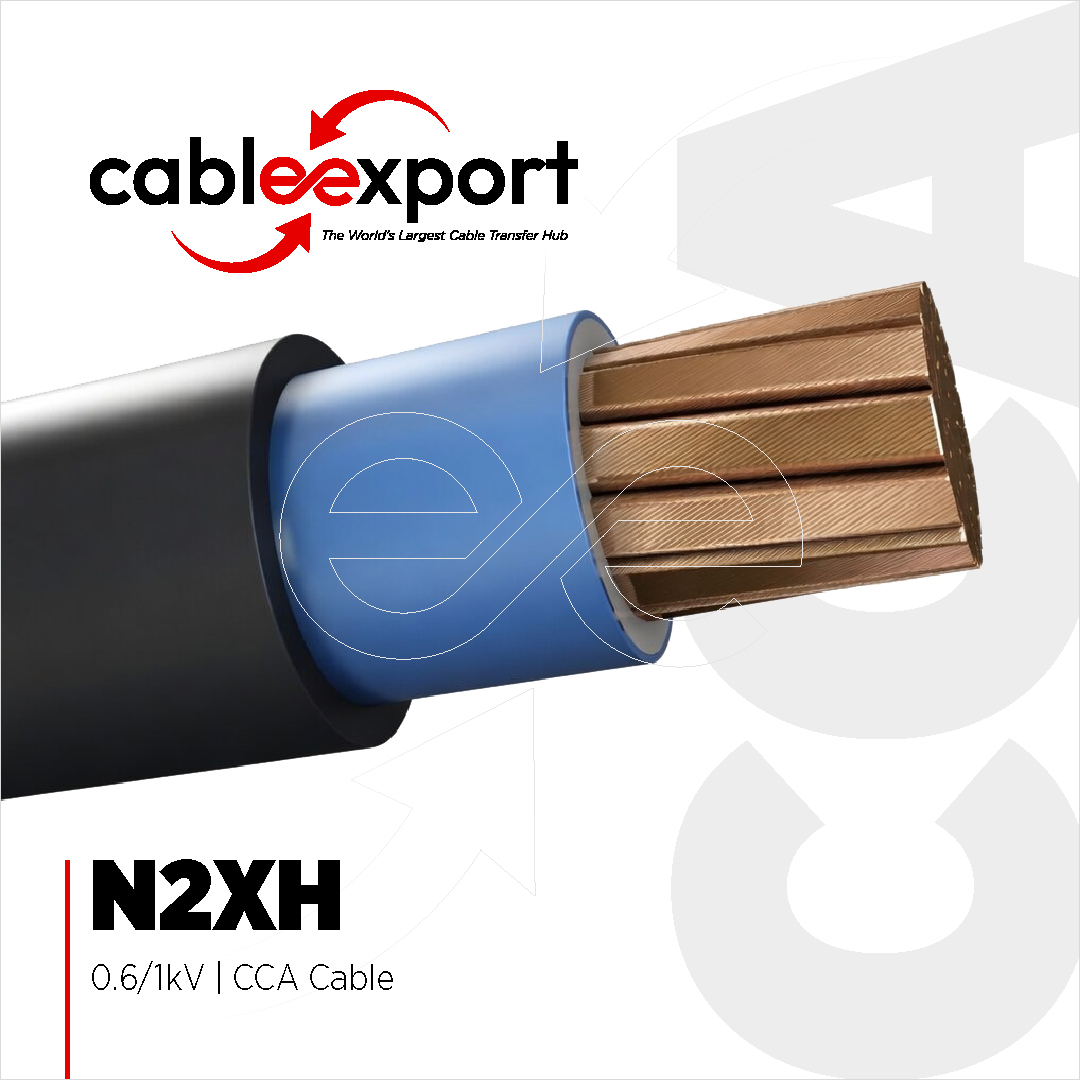

The N2XH 1×95 mm² 0.6/1kV power cable is engineered for industrial and commercial electrical installations where safety standards require halogen-free, flame-retardant materials. Featuring a robust single-core copper conductor and high-grade cross-linked polyethylene (XLPE) insulation, this cable ensures reliable power transmission under rigorous operational demands. Its advanced compound construction minimizes toxic gas emissions and smoke density during fire incidents, making it a critical component for modern architectural and infrastructural projects.
Key Technical Specifications
Designed to meet stringent global engineering benchmarks, the N2XH 1×95 mm² cable incorporates specific material and structural properties optimized for professional deployment.
| Parameter | Specification |
| Cable Designation | N2XH |
| Conductor Cross-Section | 1×95 mm² |
| Rated Voltage (Uo/U) | 0.6/1 kV |
| Conductor Type | Single or multi-wire copper conductor |
| Insulation Material | XLPE (Cross-Linked Polyethylene) |
| Outer Sheath / Compound | Halogen-free, flame-retardant thermoplastic (LSZH) |
| CPR Classification | Cca-s1, d2, a1 |
| Governing Standard | TS HD 604 S1 |
Applications & Installation
This halogen-free power cable is primarily specified for fixed installations in dry or damp environments, both indoors and outdoors. Due to its superior fire-performance characteristics, N2XH cables are mandatory in high-density public buildings, transport terminals, hospitals, high-rise residential blocks, data centers, and industrial facilities where human life and sensitive electronic equipment must be protected against corrosive gases and dense smoke. The cable is suitable for direct installation on cable trays, within walls, and in conduits.
Standards & Compliance
The N2XH 1×95 mm² 0.6/1kV cable complies with international manufacturing and safety protocols. It adheres to the TS HD 604 S1 standard and achieves a Construction Products Regulation (CPR) Euroclass rating of Cca-s1, d2, a1, confirming its low heat release, minimal smoke production, absence of flaming droplets, and extremely low acidity levels during combustion.
