Product Overview

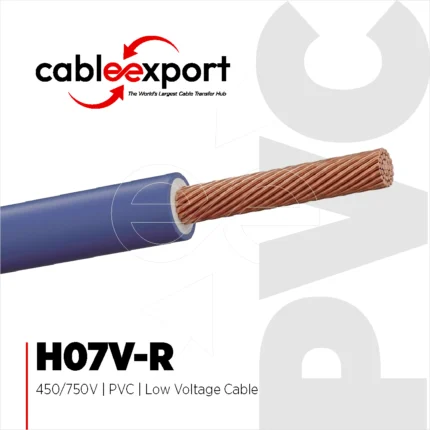

The H07V-R 35 mm² 450/750V is a high-performance, single-core low voltage power and control cable designed for professional electrical installations. Built with a stranded copper conductor and robust PVC insulation, this unsheathed cable delivers dependable conductivity and mechanical stability for demanding industrial, commercial, and residential infrastructure projects.
Key Technical Specifications
- Product Category: Low Voltage Cable (H07V-R)
- Conductor Cross-Section: 35 mm²
- Conductor Type: Stranded Copper Conductor (Class 2)
- Rated Voltage (Uo/U): 450/750V
- Insulation Material: Polyvinyl Chloride (PVC)
- Sheath: Unsheathed
- CPR Compliance: Eca Class
| Parameter | Specification |
| Cable Standard | TS EN 50525-2-31 |
| Conductor Material | Stranded Copper |
| Insulation | PVC |
| Voltage Rating | 450/750V |
| Cross-Section Area | 35 mm² |
| Reaction to Fire (CPR) | Eca |
Applications & Installation
The H07V-R 35 mm² cable is engineered for fixed installations in dry environments. It is widely specified for installation in conduits, under and on surface-mounted wiring, and inside distribution boards and switchgear control panels. Its stranded copper construction provides optimal flexibility during pulling and routing within complex electrical pathways while ensuring secure terminal connections.
Standards & Compliance
Manufactured in strict adherence to international and regional regulations, this cable complies with TS EN 50525-2-31 specifications. It meets European Construction Products Regulation (CPR) requirements with an Eca fire performance classification, ensuring safety and regulatory compliance for global import and export operations.
