Product Overview

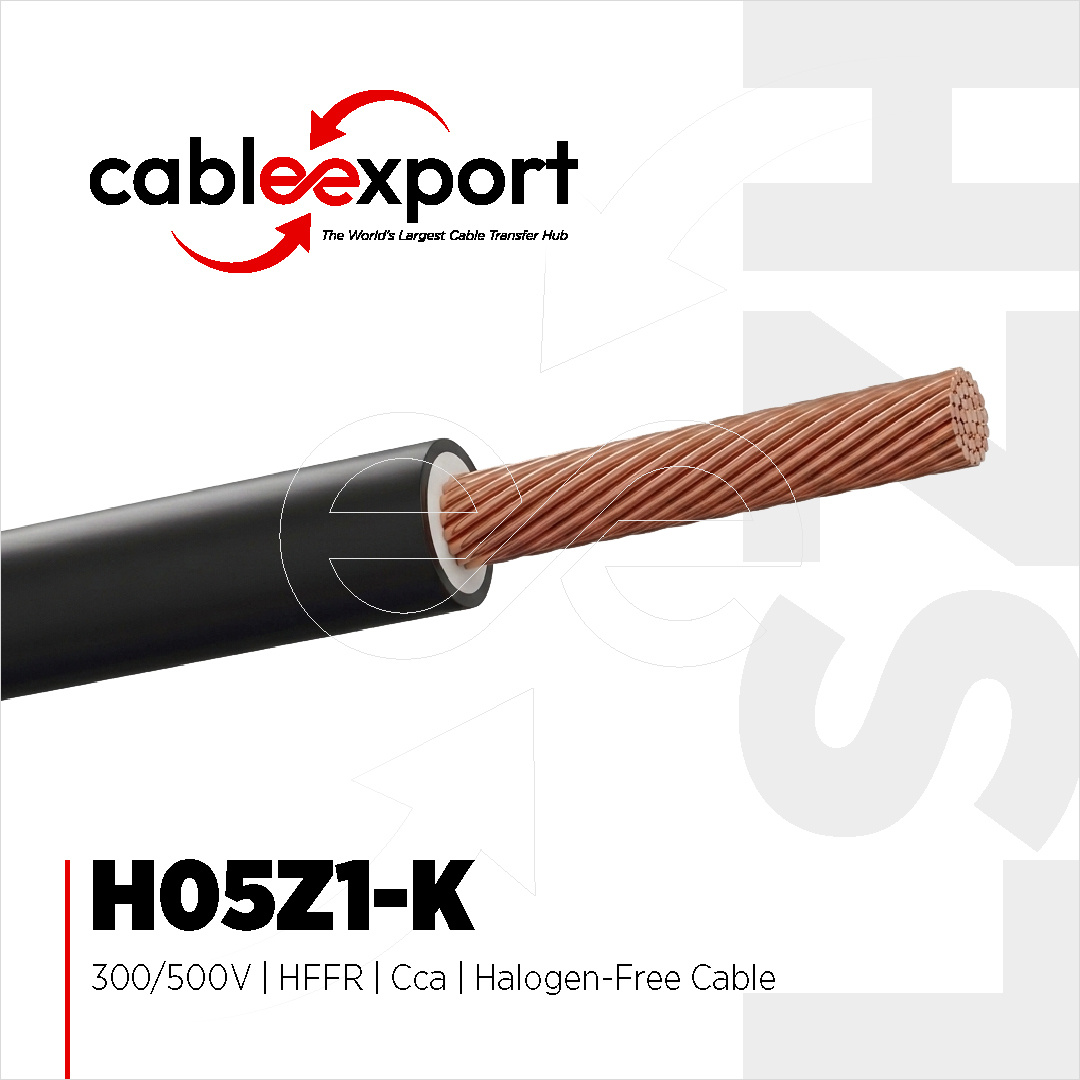

The H05Z1-K 1 mm² 300/500V cable supplied by Cable Export is a premier single-core installation wire engineered for professional electrical distribution networks. Featuring fine-stranded copper conductors and advanced thermoplastic HFFR (Halogen-Free Flame Retardant) insulation, this wiring solution is specifically manufactured for environments requiring strict fire safety protocols, zero halogen emissions, and reduced toxic smoke generation during combustion.
Key Technical Specifications
Engineered to meet rigorous international procurement criteria, the H05Z1-K integrates precise dimensional and electrical parameters:
| Parameter | Specification |
| Product Code / Category | H05Z1-K (LSZH Cable) |
| Nominal Cross-Section | 1 mm² |
| Rated Voltage (Uo/U) | 300/500V |
| Conductor Type | Fine-Stranded Copper Conductor (Single Core) |
| Insulation Material | HFFR / LSZH (Halogen-Free, Flame Retardant) |
| CPR Euroclass | Eca |
| Primary Characteristics | Halogen-Free, Flame Retardant, Low Smoke Emission |
Applications & Installation
The H05Z1-K 1 mm² LSZH cable is optimized for internal wiring within conduits, surface-mounted and embedded installation systems, and protective enclosures for switchgear and control gear. Due to its halogen-free construction and minimal smoke density, it is extensively specified by international contractors for infrastructure projects, high-density residential complexes, commercial towers, transportation hubs, and industrial facilities where human safety and asset protection against corrosive gases are critical.
Standards & Compliance
Cable Export delivers products fully verified against recognized international testing and manufacturing standards. The H05Z1-K cable complies with:
- TS EN 50525-3-31 (Low voltage energy cables of rated voltages up to 450/750 V – Part 3-31: Cables with special fire performance – Halogen-free insulated single core cables)
- CPR (Construction Products Regulation) compliance class Eca
- IEC and equivalent European standards for flame propagation and halogen-free material verification
