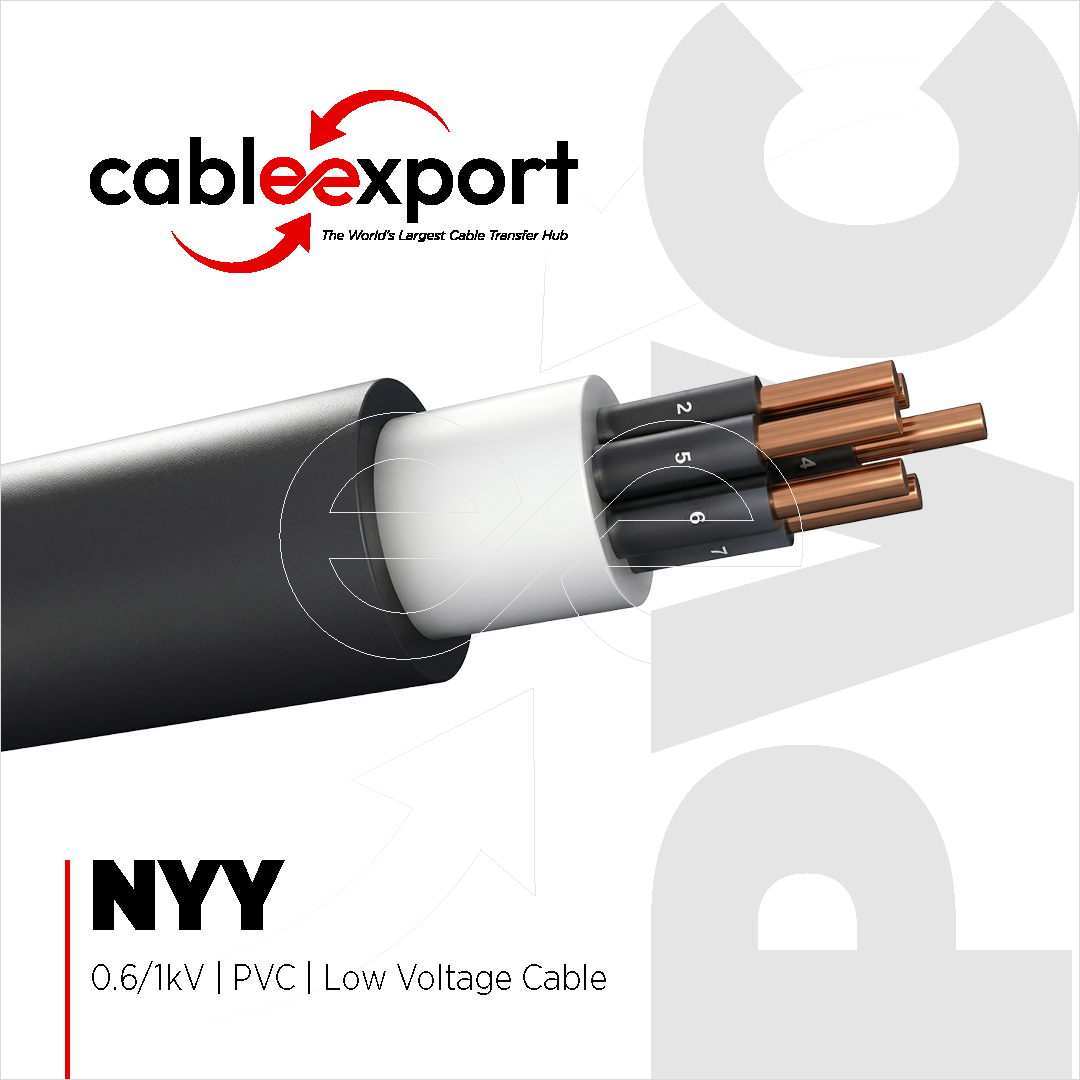

Product Overview
The NYY 7×1.5 mm² 0.6/1kV control cable is a premium low-voltage multi-core cable designed for industrial signaling, control, and power distribution networks. Built to meet stringent international requirements, this cable features solid copper conductors and is protected by durable polyvinyl chloride (PVC) compounds for both core insulation and the outer sheath. It is well-suited for demanding installation environments where mechanical durability and reliable electrical insulation are critical parameters.
Key Technical Specifications
Engineered for professional electrical distribution and control applications, this cable adheres to strict dimensional and material tolerances. Below is a summary of the core technical parameters derived from manufacturing standards:
| Cable Type | NYY (PVC/PVC Control Cable) |
| Cross-Section | 7×1.5 mm² |
| Rated Voltage (Uo/U) | 0.6/1 kV |
| Conductor Material | Solid Copper |
| Insulation | PVC |
| Outer Sheath | PVC |
| CPR Compliance | Eca |
| Design Standard | TS IEC 60502-1 |
Applications & Installation
NYY 7×1.5 mm² control cables are intended for fixed installations in internal spaces, cable ducts, power stations, and switching stations. They can be installed outdoors or underground where there is no risk of severe mechanical damage and no excessive tensile strain. The PVC outer sheath provides resistance against standard industrial chemicals, moisture, and environmental weathering, ensuring long-term operational integrity in industrial infrastructure projects.
Standards & Compliance
This product is manufactured in strict alignment with TS IEC 60502-1 standards, ensuring compatibility with global electrical engineering specifications. It holds a CPR classification of Eca, reflecting its reaction-to-fire performance according to European Construction Products Regulation guidelines.
