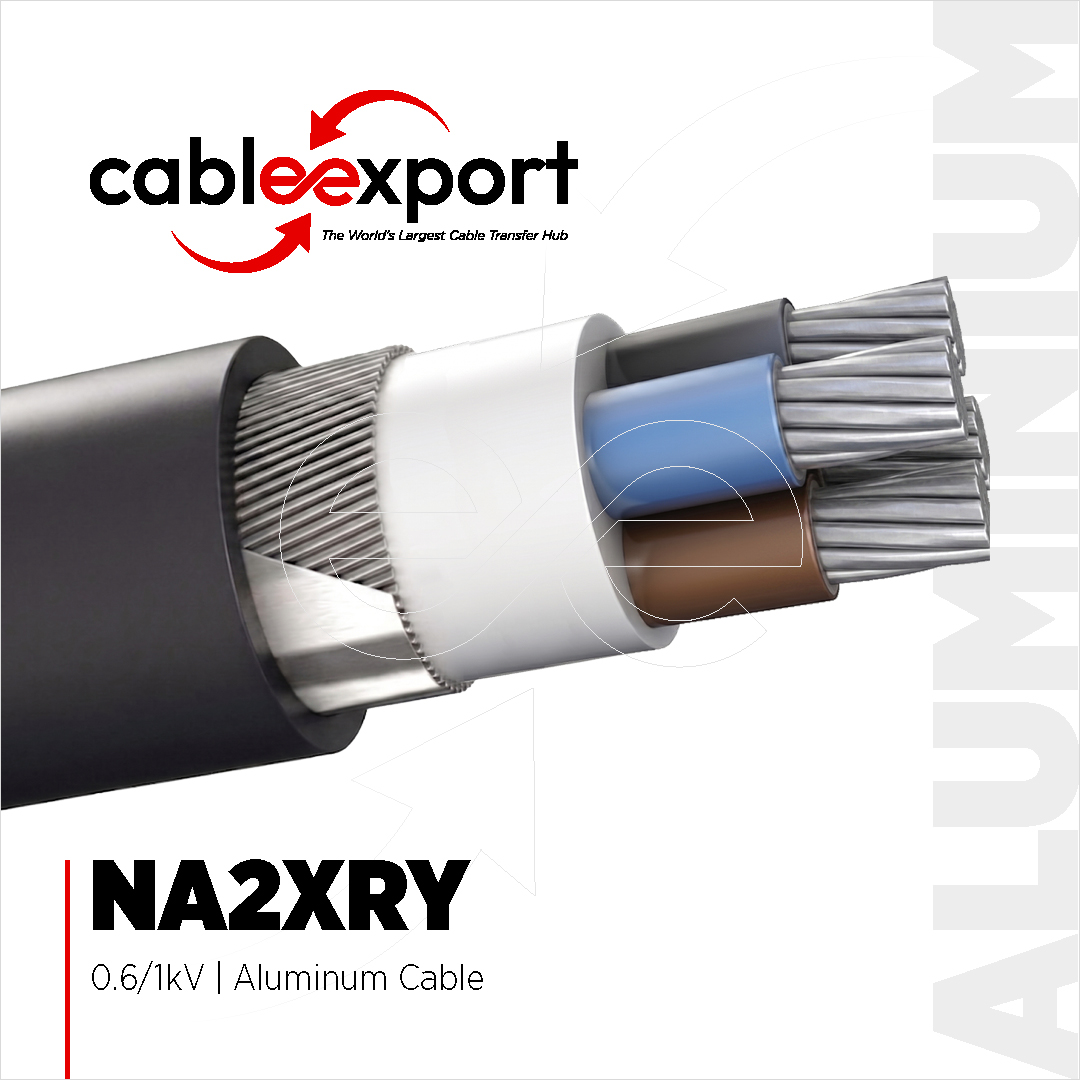

Product Overview
The NA2XRY 4×16 mm² 0.6/1kV power cable is designed for heavy-duty industrial, commercial, and utility installations where robust mechanical protection is required. Utilizing stranded aluminum conductors combined with XLPE insulation and a durable galvanized steel wire armor, this multi-core cable ensures reliable power transmission under rigorous installation conditions. It is engineered to withstand high mechanical stresses, making it suitable for direct burial and environments prone to external impact.
Key Technical Specifications
- Product Category: NA2XRY Aluminum Power Cable
- Conductor Material: Stranded Aluminum
- Conductor Cross-Section: 4×16 mm²
- Rated Voltage (Uo/U): 0.6/1 kV
- Insulation Material: XLPE (Cross-linked Polyethylene)
- Armor Type: Galvanized Steel Wire Armored (SWA)
- Construction: Multi-Core, Multi-Wire
- CPR Classification: Eca
Applications & Installation
This armored aluminum power cable is primarily utilized in fixed installations for power distribution networks. Common application areas include:
- Underground cable ducts and direct earth burial
- Industrial plants, manufacturing facilities, and switchgear connections
- Indoor and outdoor cable tray systems
- Power stations and local distribution grids
The galvanized steel wire armor provides high tensile strength, protecting the internal components from mechanical damage, rodent interference, and heavy soil pressure during and after installation.
Standards & Compliance
The NA2XRY 4×16 mm² cable is manufactured in strict accordance with recognized international manufacturing and safety protocols, ensuring consistent quality for global import and export operations.
- Design Standard: TS IEC 60502-1
- CPR Compliance: Eca reaction to fire classification
Technical Parameters Summary
| Parameter | Specification |
| Cable Type | NA2XRY (Aluminum Conductor, XLPE Insulated, Steel Wire Armored) |
| Cross-Section | 4 x 16 mm² |
| Rated Voltage | 0.6 / 1 kV |
| Insulation | XLPE |
| Armor | Galvanized Steel Wire |
| Core Configuration | Multi-Core, Multi-Wire |
| Applicable Standard | TS IEC 60502-1 |
