Product Overview

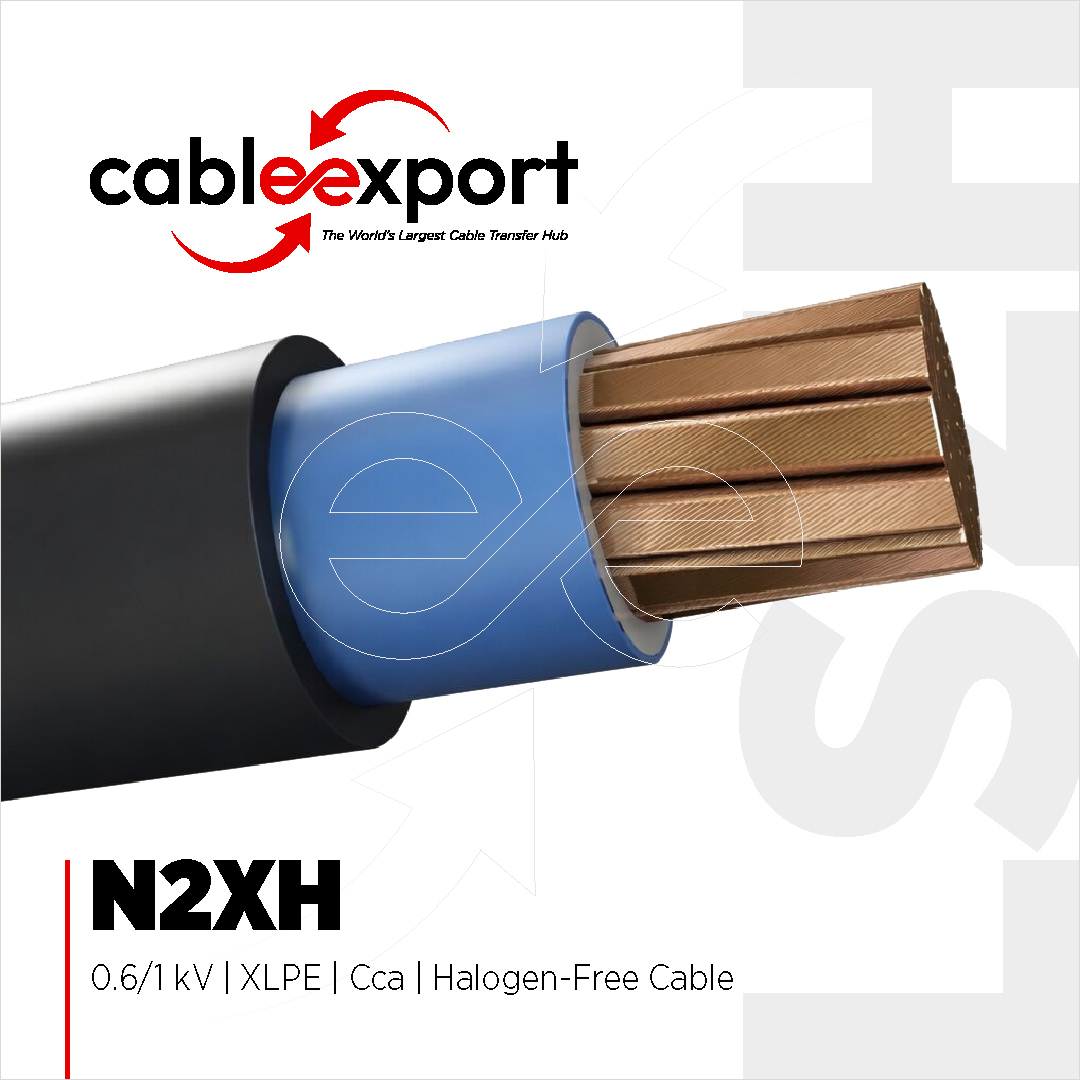

The N2XH 1×300 mm² 0.6/1 kV is a high-performance, halogen-free, single-core power cable engineered for fixed installations in industrial plants, commercial buildings, power networks, and infrastructure projects where safety requirements against fire hazards are critical. Featuring XLPE insulation and a Low Smoke Zero Halogen (LSZH) outer compound, this cable minimizes smoke density and toxic gas emission when exposed to fire, ensuring clear evacuation routes and protecting sensitive electronic equipment.
Key Technical Specifications
- Conductor: Single or multi-wire solid/stranded copper conductor
- Cross-Sectional Area: 1×300 mm²
- Rated Voltage: U0/U = 0.6/1 kV
- Insulation Material: XLPE (Cross-linked Polyethylene)
- Outer Sheath / Compound: LSZH (Low Smoke Zero Halogen), flame-retardant
- CPR Flame Class: Eca
| Parameter | Specification |
| Cable Designation | N2XH |
| Conductor Size | 1×300 mm² |
| Operating Voltage | 0.6/1 kV |
| Insulation Type | XLPE |
| Outer Jacket | LSZH (Halogen-Free) |
| CPR Rating | Eca |
| Core Type | Single Damar (Single Core) |
Applications & Installation
N2XH cables are specifically intended for interior installations in dry or damp environments, surface-mounted, in cable trays, or embedded in masonry. Due to their halogen-free properties and low smoke emission during combustion, they are mandated in environments with high concentrations of people, assets, and high-value equipment, including hospitals, schools, airports, subways, data centers, and high-rise commercial complexes.
Standards & Compliance
Manufactured strictly in accordance with TS HD 604 S1 standards, guaranteeing full compliance with European harmonization documents and global electrical utility requirements. The cable is certified flame retardant and halogen-free to support international building safety codes and environmental regulations.
