Product Overview

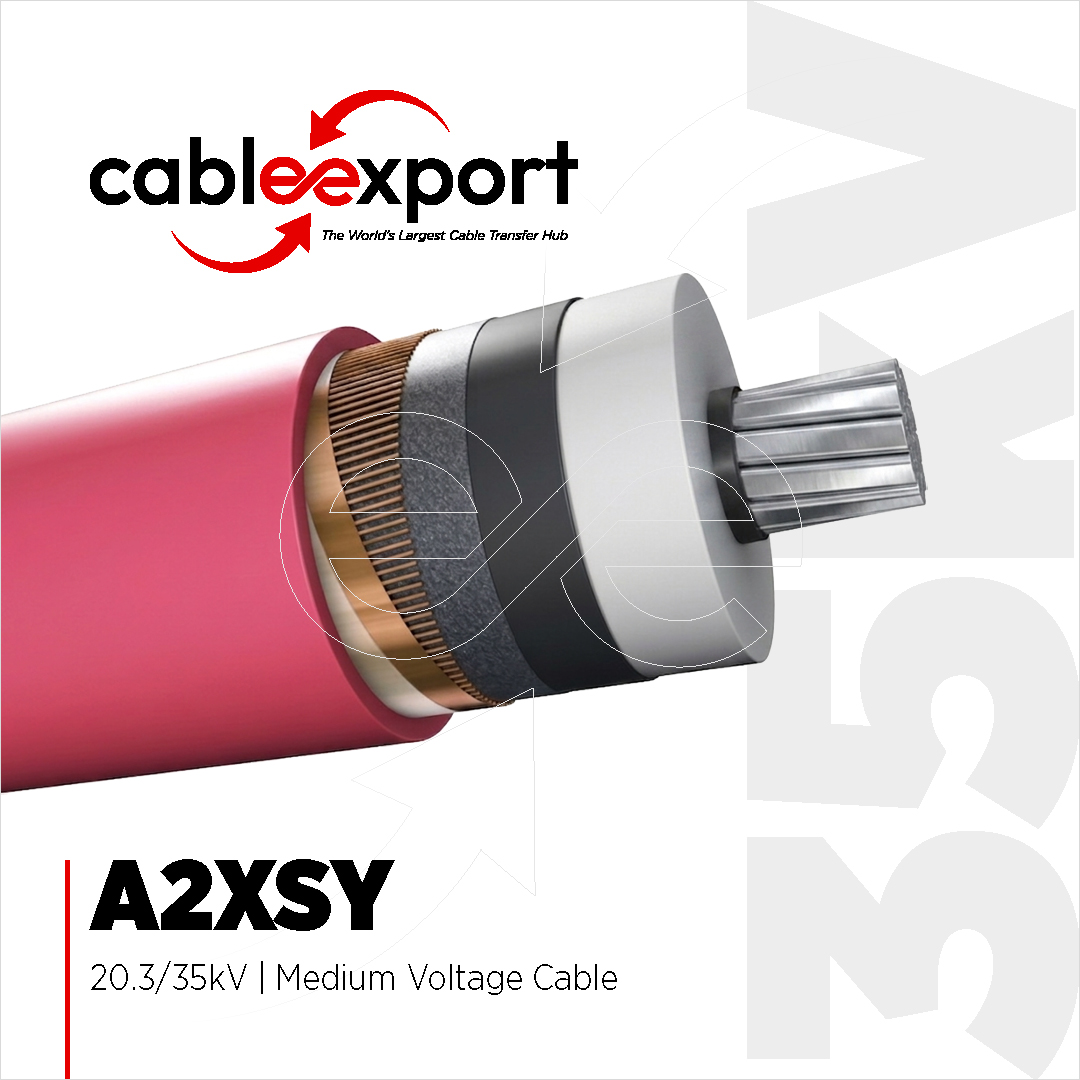

The A2XSY 1×500/35 mm² 20.3/35kV is a high-performance single-core medium voltage cable engineered for reliable power transmission and distribution in industrial facilities, utility grids, and substations. Featuring a stranded aluminum conductor, extruded XLPE insulation, internal and external semi-conductive layers, and a concentric copper wire screen, this cable delivers exceptional electrical and mechanical durability under demanding operational conditions.
Key Technical Specifications
| Cable Category | Medium Voltage Cable (A2XSY) |
| Cross-Section | 1×500/35 mm² |
| Rated Voltage | 20.3/35 kV |
| Conductor | Stranded Aluminum Conductor |
| Insulation | XLPE (Cross-linked Polyethylene) |
| Semi-Conductive Layers | Inner and Outer Extruded Semi-Conductive Layers |
| Metallic Screen | Copper Wire Screen |
| CPR Classification | Eca |
Applications & Installation
A2XSY medium voltage cables are primarily designed for fixed installations in power stations, industrial plants, and underground distribution networks. The robust copper screen provides effective fault current handling and electromagnetic shielding. Suitable for laying in cable ducts, underground, and in dry or damp environments where mechanical stress levels are within normal industrial operational parameters.
Standards & Compliance
Manufactured in accordance with recognized national and international electrical standards, including TSEK 204. The cable complies with EU Construction Products Regulation (CPR) requirements, achieving an Eca reaction-to-fire classification, ensuring strict adherence to European safety standards for building and infrastructure installations.
