Product Overview

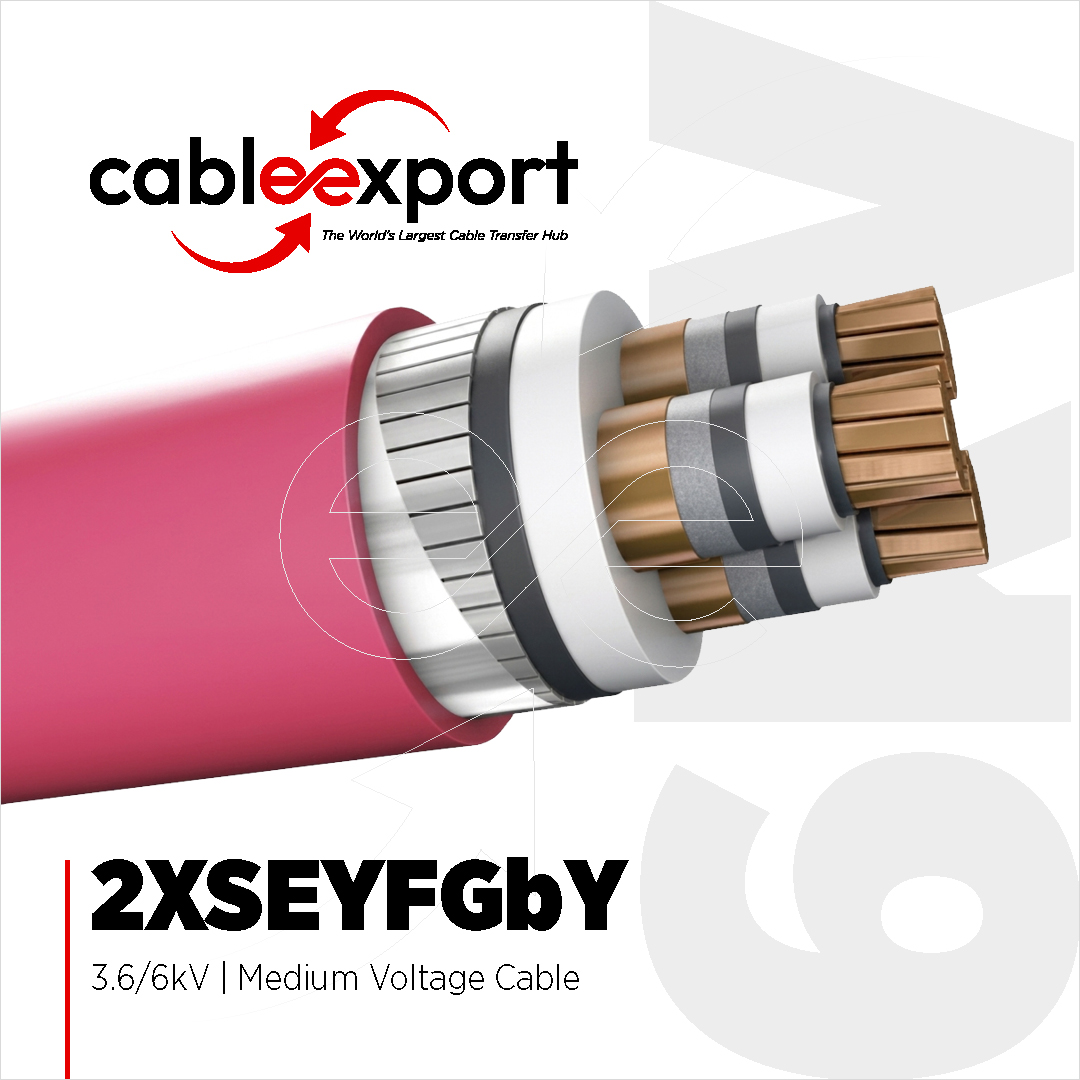

The 2XSEYFGbY 3×240/25 mm² 3.6/6kV cable is an advanced medium voltage power cable designed for reliable energy distribution in industrial plants, underground installations, and power networks. Featuring an XLPE insulation system coupled with inner and outer semiconductor layers and comprehensive copper screening, this three-core cable ensures high dielectric strength and minimal transmission losses. The robust flat galvanized steel wire armor provides exceptional mechanical tensile strength, making it ideal for routing where high mechanical stress or tensile loads are expected.
Key Technical Specifications
- Product Code / Type: 2XSEYFGbY
- Conductor Configuration: Multi-wire copper conductor
- Cross-Sectional Area: 3 x 240 mm² (Power cores) / 25 mm² (Copper screen)
- Rated Voltage (Uo/U): 3.6/6 kV
- Insulation: XLPE (Cross-linked Polyethylene)
- Screening: Inner and outer semi-conducting layers with individual copper screen on each core
- Armor: Flat galvanized steel wire armor (FGSWA)
- CPR Classification: Eca
| Parameter | Specification |
| Cable Category | Medium Voltage Cable |
| Cross-Section | 3×240/25 mm² |
| Rated Voltage | 3.6/6 kV |
| Insulation Type | XLPE |
| Conductor Material | Copper |
| Screen Material | Copper Screen per Core |
| Armoring | Flat Galvanized Steel Wire |
| CPR Class | Eca |
Applications & Installation
This medium voltage armored cable is engineered for stationary power distribution networks. Typical deployment scenarios include:
- Direct burial in soil with high mechanical protection requirements
- Industrial facilities, transformer stations, and power generation plants
- Cable ducts, indoor and outdoor cable trays
- Subterranean installations subject to normal and heavy mechanical stresses
Standards & Compliance
The 2XSEYFGbY 3×240/25 mm² medium voltage cable is manufactured and tested in strict adherence to international electrical standards to guarantee operational safety, durability, and performance integrity across global projects.
- Design Standard: TS IEC 60502-2
- CPR Compliance: Eca fire performance classification
